Relative, absolute, mixed, and structured references

excel
intermediate
Published

August 8, 2024

Session materials

Previous attendees have said…

  • 9 previous attendees have left feedback
  • 100% would recommend this session to a colleague
  • 100% said that this session was pitched correctly

Three random comments from previous attendees
  • very useful, especially using new version of Excel and named tables.
  • I always use A1 referencing but have seen the light and Structured Referencing is the future :-)
  • I missed the first 20 minutes as I was tied up in another meeting, but found what I did attend useful, thank you

Welcome

  • this session is for 🌶🌶 intermediate Excel users
  • you’ need Excel of some sort to follow along
  • you’ll also need the exercise workbook
  • if you can’t access the chat, you might need to join our Teams channel: tinyurl.com/kindnetwork
  • you can find session materials at tinyurl.com/kindtrp

Session outline

  • this is an intermediate-level review of referencing techniques in Excel
  • it’s a technical session, so we’ll concentrate on the how of referencing
  • A1 references
    • relative
    • absolute
    • mixed
  • structured references
  • R1C1

A1 references

  • A1 references are the standard way that references are made in Excel
  • A1 references are usually made up of a letter and a number (like A2, B56, …)
    • the letter stands for the column a cell is in
    • the number stands for the row
  • we can use those references in formulas
    • =A1 will copy the values from A1 into the current cell
  • you can also use the range operator (:) to select several values - like A1:A3
Task
  1. using A1 references, can you populate the first three rows of the summary table in the A1 referencing sheet?
    1. Start date
    2. End date
    3. First duty manager
  2. you might need to switch off Calculated Columns from the floatie

Absolute vs relative references

  • by default, A1 references are relative
    • if the formula moves, the reference will change
Task
  1. try copy/pasting your three summary values:
    1. a few columns across
    2. a few rows down
  2. what happens to your values?

The effect of moving our summary cells down the sheet
  • as you’ve seen, relative references can cause problems
  • you can change relative references to absolute (=fixed) references using $
    • $A$1 refers to A1 no matter what
      • use this if you absolutely always want to refer to the same cell
Task
  1. update your relative references in the summary table to absolute references by adding $ before both the column letter, and the row number
Note
  • if you click in the formula bar, F4 toggles absolute/relative

Mixed references

  • $A1 will be absolute in the column, but relative in the rows
  • A$1 will be relative in the row, but absolute in the column
  • take care with these - they’re pretty confusing (and we’ll look at a much better way of doing the same thing below)

Structured referencing

  • most objects in Excel can be named - including cells, tables, and ranges
  • structured referencing is a special case
    • Table[Column] syntax
    • shared across Power BI, PowerQuery…
Task
  1. please switch to the Structured referencing sheet
  2. sum up each of the three service columns in the summary table
  • =SUM(SR_table[service_a]) / =SUM(SR_table[service_b]) / =SUM(SR_table[service_c])

Implicit intersection

  • you can convert a structured reference to a column to refer to a single value
  • that’s done using the implicit intersection operator [@col]
    • (if you’re using an older version of Excel, you might also see this written as [@[Service_duration]])
  • if you pick reference locations with the mouse, this is how Excel will render your references
Task
  1. please try populating the daily_total by summing with implicit intersection
  • =SUM(SR_table[@[service_a]:[service_c]])

R1C1

  • R1C1 gives an alternative way of referring to cells
  • slightly more complicated, but more precise, and less confusing
  • largely encountered in VBA, but available and helpful in standard Excel
Task
  1. Switch to the R1C1 referencing sheet
  2. switch to inspect formulas (Ctrl + backtick)
  3. Have a look at the formula in the First name column

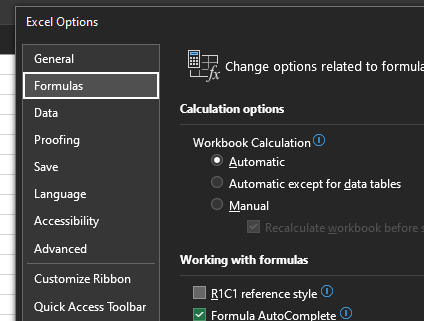

  4. Now switch your workbook to R1C1 by File > Options > Formulas > R1C1 reference style
  • column letters (A, B, C,…) are replaced by numbers
  • row numbers remain as row numbers
    • R1C1 = A1
    • R2C8 = H2
Task
  1. Have another look at the formula in the First name column - it should be much easier to conclude that this is the same formula in every row

Types of R1C1 referencing

  • three kinds of R1C1 reference:
    • absolute reference = specify a row and column number (R2C2)
    • relative reference by adding a numeric offset in square brackets (R2C[-6])
    • implicit intersection-like “give me this row’s column 2” by using a bare R/C (RC2)
  • a much nicer way of doing mixed referencing
Task
  1. in R16C4, please populate the four rows of the Age column in the summary table using R1C1

Why bother with R1C1?

  • R1C1 adds a bit of complexity to simple formulas
    • but it makes complicated formulas (and repeated formulas) much easier to understand
    • this is a big help when working with more complex Excel documents - particularly if you’re debugging something that’s gone wrong
  • R1C1 gives the same formulas for the same work across different columns
    • we have to work this out by hand with A1 referencing - the row number would be different each time
    • this helps us understand quickly when and where a formula is repeated
  • (apparently) R1C1 is faster with very complex sheets
