Joining data with dplyr
Session outline
This session is an 🌶🌶 intermediate practical designed for those with some R experience. The aim of this session is to do three things with dplyr:
- explain the difference between binds and joins
- to demonstrate a range of different joining strategies
- to look at dplyr’s tools for controlling joins
You might also like some of the other dplyr-themed practical sessions:
Joins
Joins are where we merge two tibbles together in some way, while broadly preserving the structure of each. There are a few different ways of joining data in dplyr, and we’ll explore the following approaches during this session:
- binding joins, which are joins where data are added based on position. For example, we merge the each of the first columns in the two tibbles into one new first column.
- mutating joins, which are joins where data are added by values to match existing data. For example, we might match two tibbles based on CHI number, and connect two otherwise dissimilar data sets together.
- filtering joins, where we filter one dataset using a joining relationship. For example, we might remove any individuals from a dataset based on their CHI appearing in a second dataset
- non-equi joins, which we’ll only mention here, but will deal with properly in a more developed follow-up session
Setup
Binding
Introduction
Binding joins don’t change the structure of the data in any way. Instead, they just bring together multiple tibbles into one. That’s nearly always about adding rows using bind_rows()
bind_rows()
bind_rows()
does exactly what the name describes. It adds the rows of one tibble to another, resulting in one joined tibble containing all the rows:
x |>
bind_rows(y)
# A tibble: 10 × 3
category value key
<chr> <dbl> <dbl>
1 x 5 3
2 x 2 7
3 x 4 2
4 x 7 1
5 x 9 1
6 y 2 5
7 y 7 2
8 y 3 2
9 y 2 8
10 y 2 14
rbind()
That’s similar to the base R rbind()
x |>
rbind(y)
# A tibble: 10 × 3
category value key
<chr> <dbl> <dbl>
1 x 5 3
2 x 2 7
3 x 4 2
4 x 7 1
5 x 9 1
6 y 2 5
7 y 7 2
8 y 3 2
9 y 2 8
10 y 2 14
Missing values
Unlike rbind()
, which breaks if the column names don’t match, bind_rows()
will create new columns and fill with NAs if the names of the columns don’t match:
coalesce()
coalesce()
is a good way to gather values that become spread out across mis-matched columns:
ID
And you can create an optional ID column to show where each row originated, which is helpful for debugging:
x |>
bind_rows(y, .id = "ID")
# A tibble: 10 × 4
ID category value key
<chr> <chr> <dbl> <dbl>
1 1 x 5 3
2 1 x 2 7
3 1 x 4 2
4 1 x 7 1
5 1 x 9 1
6 2 y 2 5
7 2 y 7 2
8 2 y 3 2
9 2 y 2 8
10 2 y 2 14
Many binds
You can also bind_rows()
by list:
bind_cols()
Another function, another descriptive name. bind_cols()
adds columns to the starting tibble, but otherwise works as bind_rows()
:
x |>
bind_cols(y, .name_repair="universal") # various different name repair options
# A tibble: 5 × 6
category...1 value...2 key...3 category...4 value...5 key...6
<chr> <dbl> <dbl> <chr> <dbl> <dbl>
1 x 5 3 y 2 5
2 x 2 7 y 7 2
3 x 4 2 y 3 2
4 x 7 1 y 2 8
5 x 9 1 y 2 14
cbind()
Another base R near-equivalent - although note that cbind()
is prone to generating illegal column names that can be extremely hard to fix:
x |>
cbind(y)
category value key category value key
1 x 5 3 y 2 5
2 x 2 7 y 7 2
3 x 4 2 y 3 2
4 x 7 1 y 2 8
5 x 9 1 y 2 14
Mutating joins
Introduction
To get started with mutating joins in dplyr, we could do much worse than the first part of the manual page, which is nice and clear:
The mutating joins add columns from y to x, matching rows based on the keys:
-
inner_join()
: includes all rows in x and y. -
left_join()
: includes all rows in x. -
right_join()
: includes all rows in y. -
full_join()
: includes all rows in x or y. -
anti_join()
: includes all rows in x that are not in y.
If a row in x matches multiple rows in y, all the rows in y will be returned once for each matching row in x.
cross_join()
cross_join()
creates all possible combinations (the Cartesian product) of two datasets. If we have m rows in one, and n rows in another, our cross join will have m * n rows.
x |>
cross_join(y)
# A tibble: 25 × 6
category.x value.x key.x category.y value.y key.y
<chr> <dbl> <dbl> <chr> <dbl> <dbl>
1 x 5 3 y 2 5
2 x 5 3 y 7 2
3 x 5 3 y 3 2
4 x 5 3 y 2 8
5 x 5 3 y 2 14
6 x 2 7 y 2 5
7 x 2 7 y 7 2
8 x 2 7 y 3 2
9 x 2 7 y 2 8
10 x 2 7 y 2 14
# ℹ 15 more rows
cross_join()
+ filters/mutates
If we filter (and otherwise tidy up the structure) of cross-joins, we can create other types of join. For example, an inner join is a cross join with a filter to retain only rows with identical keys:
x |>
cross_join(y) |>
filter(key.x == key.y)
# A tibble: 2 × 6
category.x value.x key.x category.y value.y key.y
<chr> <dbl> <dbl> <chr> <dbl> <dbl>
1 x 4 2 y 7 2
2 x 4 2 y 3 2
Less painfully, we can do that direct with inner_join()
, as we’ll see below.
by
We need to specify which values our join should match on. There are two ways of doing this. The traditional approach has used by
:
x |>
inner_join(y, by = "key")
# A tibble: 2 × 5
category.x value.x key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 4 2 y 7
2 x 4 2 y 3
join_by()
A newer approach, which offers some more advanced options for matching, is join_by()
. For simple cases, it’s very similar to the standard by
approach:
x |>
inner_join(y, by = join_by(key)) # unquoted tidyselect syntax
# A tibble: 2 × 5
category.x value.x key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 4 2 y 7
2 x 4 2 y 3
Understanding join_by()
That short-hand syntax stands for:
x |>
inner_join(y, by = join_by(key == key)) # filter-like relationship between columns
# A tibble: 2 × 5
category.x value.x key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 4 2 y 7
2 x 4 2 y 3
That lets us deal easily with non-identical column names:
Non-identical column names
Our examples so far have used data with identical column names. Let’s break that now:
x |>
rename(new_key = key) |>
inner_join(y, by = join_by(new_key == key))
# A tibble: 2 × 5
category.x value.x new_key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 4 2 y 7
2 x 4 2 y 3
It’s possible to use non-equality expressions inside join_by()
for more advanced joins known as non-equi joins. We don’t really explore those in this session, but will plan to develop a separate set of material in the future.

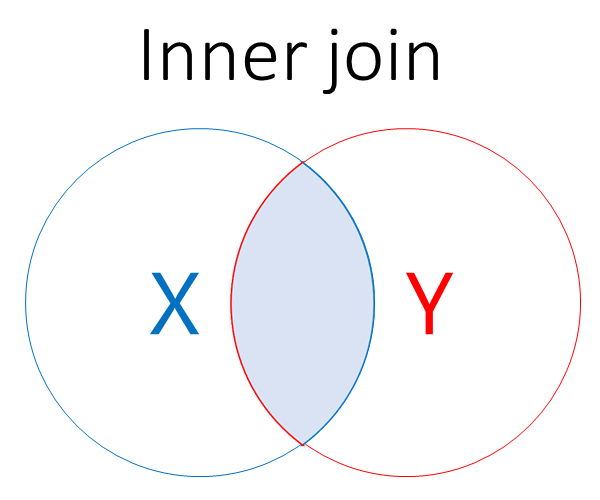

inner_join()
inner_join()
joins two tibbles by whichever key column you supply using by=
inner_join()
example
x |>
inner_join(y, by = join_by(key))
# A tibble: 2 × 5
category.x value.x key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 4 2 y 7
2 x 4 2 y 3
This returns all the rows that exist in both tibbles.

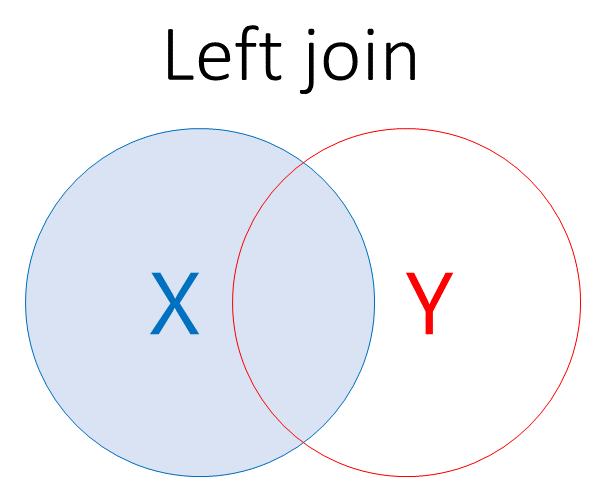

left_join()
left_join()
includes all the rows in the first tibble
left_join()
example
# A tibble: 6 × 5
category.a value.a key category.b value.b
<chr> <dbl> <dbl> <chr> <dbl>
1 x 5 3 <NA> NA
2 x 2 7 <NA> NA
3 x 4 2 y 7
4 x 4 2 y 3
5 x 7 1 <NA> NA
6 x 9 1 <NA> NA
We get returned the rows that exist in x
, and any that match keys from y
. Any ‘extra’ rows in simple_a are filled in with NAs
. We’ve also tweaked the column names in this example, using the suffix
argument.
right_join()
right_join()
includes all the rows in the second tibble
right_join()
example
x |>
right_join(y, by = join_by(key), keep=T)
# A tibble: 5 × 6
category.x value.x key.x category.y value.y key.y
<chr> <dbl> <dbl> <chr> <dbl> <dbl>
1 x 4 2 y 7 2
2 x 4 2 y 3 2
3 <NA> NA NA y 2 5
4 <NA> NA NA y 2 8
5 <NA> NA NA y 2 14
We get all the rows that exist in y
, and any that match keys from simple_a
, again, filling with NAs where appropriate. Here, we’re demonstrating the keep
argument, which will repeat the column on which we’re joining for each of the tibbles.

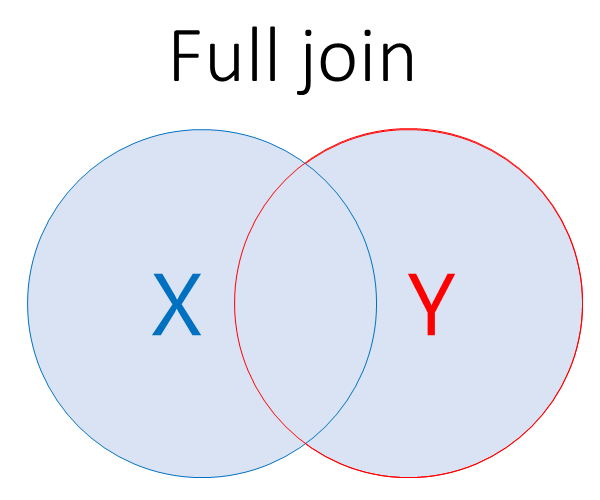

full_join()
full_join()
gives us all the rows from all the tibbles
full_join()
example
# A tibble: 9 × 5
category.x value.x key category.y value.y
<chr> <dbl> <dbl> <chr> <dbl>
1 x 5 3 <NA> NA
2 x 2 7 <NA> NA
3 x 4 2 y 7
4 x 4 2 y 3
5 x 7 1 <NA> NA
6 x 9 1 <NA> NA
7 <NA> NA 5 y 2
8 <NA> NA 8 y 2
9 <NA> NA 14 y 2
All rows in both tibbles, filling with NAs
where needed.
Filtering joins
While the mutating joins mean that different parts of the data are joined together, it’s also worth knowing about a couple of filtering joins. Unlike mutating joins, filtering joins just return a sub-set of the first dataset.

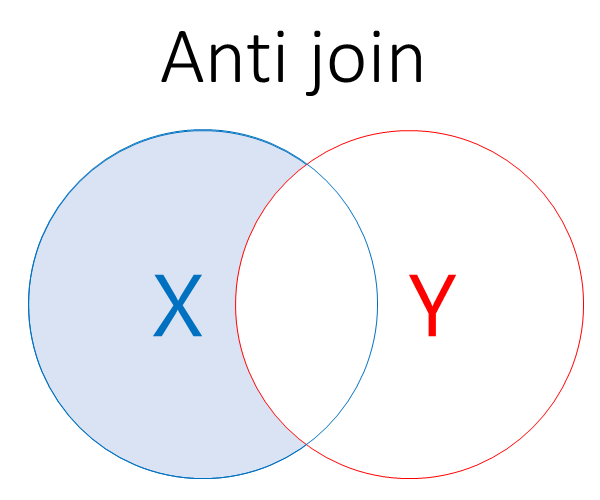

anti_join()
Anti-join removes any rows whose keys match those in the second set, so it always returns either the original tibble (if there aren’t any matches), or a smaller sub-set tibble with any matching rows removed.
anti_join()
example
semi_join()
Semi-join is an anti-anti-join()
, returning only those rows that do not match keys.
semi_join()
example
Because it’s a filtering join, it only returns rows from the first tibble, but otherwise the logic is identical to the inner join.
Helpers
There are a group of helpers that can be added to joins that are mainly helpful for debugging, or preventing odd behaviours in more complex joins
keep = NULL # keep the join keys
na_matches = c("na", "never") # what to do with NA values
multiple = "all" # in the case of multiple matches, only the any/first/last match is joined
unmatched = "drop" # drop or produce an error for unmatched rows
relationship = "one-to-many" # error checking the expected relationship
Helper example
x |>
inner_join(y, by = join_by(key == key),
keep = T, # adds x and y join keys
na_matches = "never", # drops any NAs in the key column
relationship = "one-to-many") # checks that each key in y appears once only in x
# A tibble: 2 × 6
category.x value.x key.x category.y value.y key.y
<chr> <dbl> <dbl> <chr> <dbl> <dbl>
1 x 4 2 y 7 2
2 x 4 2 y 3 2
Nesting joins
This is useful if you’re trying to understand exactly what’s happening during a complex join. Instead of bringing in columns from the second tibble directly, nest_join()
creates the new columns as a list col:
Dealing with list columns
This is for the purrr lists session really, but list columns can be tidyr::unnest()
’d into standard columns. In this example we need to worry a bit about the column names, because they’re identical in the two tibbles:
