Excel formatting

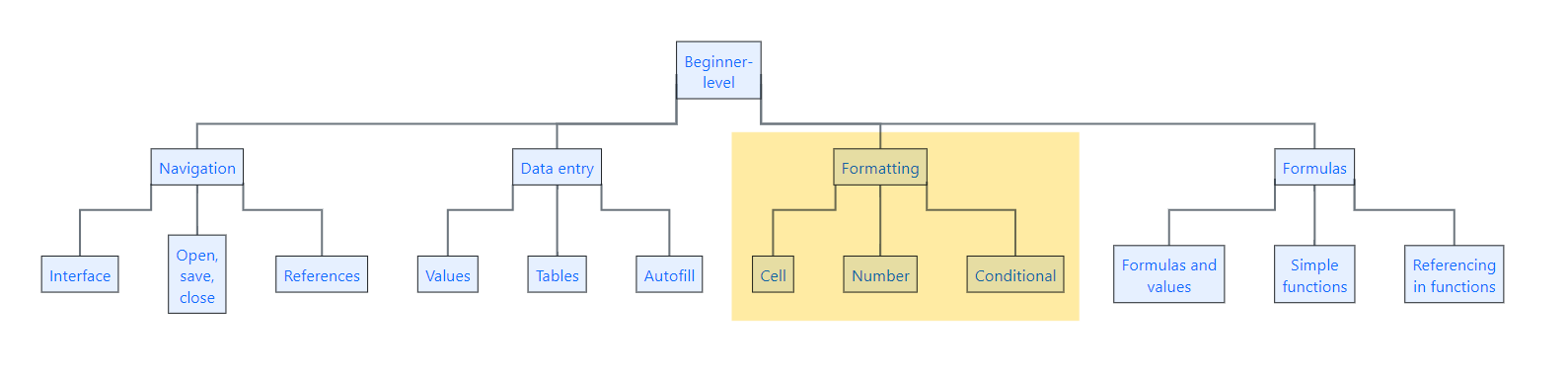

This session is part of our Excel for beginners course. That’s a series of six linked sessions, delivered on Teams, that give an introduction to Excel for people working in health and social care. The sessions are:
- Excel first steps
- Tidy data in Excel
- References and names in Excel
- Excel formatting (this session)
- Excel tables
- Excel formulas
Together, they aim to help you develop an appropriate set of Excel skills to help your work. This session covers formatting in Excel:
- for this session, you’ll need to be familiar with the Excel basics (getting around in Excel, opening/saving/closing files)
- you’ll also need to be familiar with A1 referencing, values, and tables
- we’re going to avoid talking about formulas as much as possible today
- you might find the list of Excel shortcuts helpful too
Previous attendees have said…
- 83 previous attendees have left feedback
- 98% would recommend this session to a colleague
- 96% said that this session was pitched correctly
Excellent session with great tips to take away.
Amazing session very clear and informative
Good light hearted session, easily explained and easy for me to understand! Although I knew some of the information shared, I still picked up some useful tips and hints. Thank you Brendan
- all materials
- slides
html / pdf
Session outline
(thanks Deborah Calvin, Brian Orpin, Michael Roarty, Kenneth Mack, Catherine McGrenera, June Livey, Catriona Scott)
- accessibility
- formatting cells
- formatting values (aka number formatting)
- formatting vs other things
- shortcuts and tips
- an introduction to conditional formatting
Accessibility
- many of us will have legal duties to make parts of our services accessible
- there are useful standards for making sense of accessibility
Excel is a mixed bag for accessibility
- it is easy to make non-accessible documents in Excel
- merged and split cells
- inconsistent use of tables
- poor column headings, sheet names, etc
- unlabelled charts
- low-contrast themes
- meaning conveyed by colour and fonts
- there is a built-in accessibility checker in some versions of Excel, which you might find useful
Formatting cells
- please create a new Excel workbook

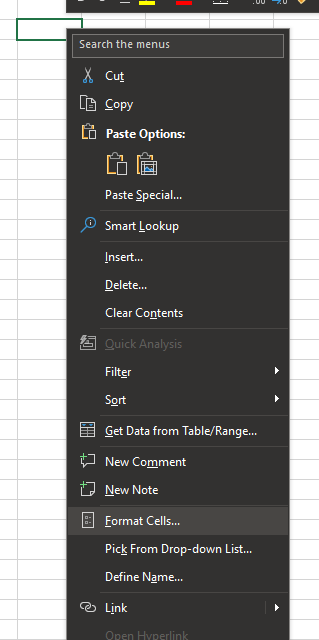

- you can format each cell individually via the right click menu and
Format cells
(or by theCtrl
+1
shortcut)

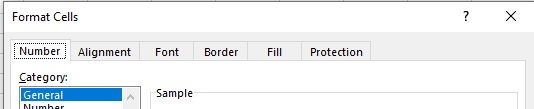

Format cells dialogue
- you can fill cells with custom fonts, alignments, colours, patterns, and gradients (via
Fill Effects...
) - you can add borders to individual cells
Formatting many cells
- this is fine for a few cells, but gets boring (and inconsistent) if you have lots of styling to do
- you can select several cells, and access the
Format cells dialogue
to style them together - or you can select a cell with a theme you want to copy, and use the
Format Painter
tool to spread that format about the place
Theming

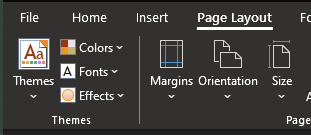

- you can also theme your whole workbook
- take care, though, as many of these themes are not accessible and often produce hard-to-read results
- and lots of ugly clunky stuff to find (e.g. default font changes)
- on balance, better to avoid themes unless you’re certain they’ll be of benefit for you
Help! I hate my formatting!
-
Clear
>Clear Formats
(orAlt
,H
,E
,F
) - note this doesn’t clear out all the formatting from themes - especially odd fonts etc

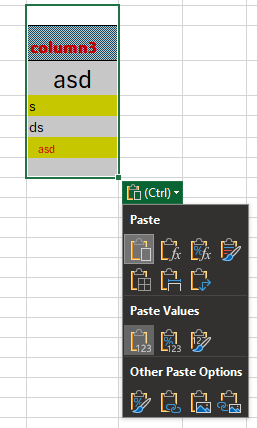

- also worth having the
Paste as Values
trick in your back pocket for when things go horribly wrong
Number formatting
- number formatting is taking a value, and changing its meaning with formatting
- number formatting is how dates work (or fail to work) in Excel
- dates are v. important, so we’ll concentrate on them in this part of the session
- you’ll also encounter number formatting when working with…
- money
- percentages
- decimal places
- …
Date formatting
- we’ll take a number, and apply special formatting to it to make it look like a date
- so
45483
will become10/07/2024
- so
- Excel dates are stored as the number of days since Jan 1st 1900

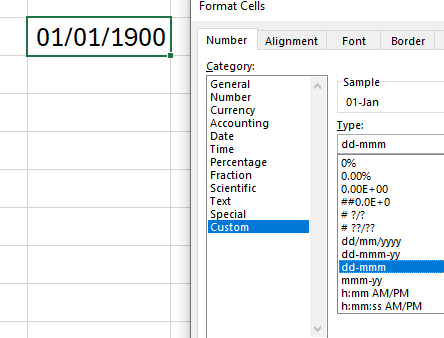

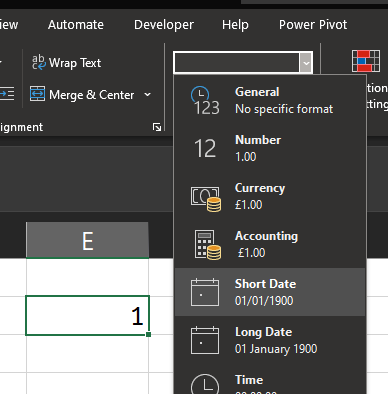

- you can prove this to yourself by typing
1
into a cell, then formatting it as a date using the number formatting menu: - you can also format as a date via the Format Cells dialogue (
Ctrl
+1
)
Don’t try and cheat with dates!
- date formatting is one of the commonest pain points in Excel
- dates are extremely complicated, and we often want to calculate with them
- the advice is simple: dates should always be stored as these numbers, and then formatted to look like dates
- don’t try to cheat by writing dates as text
- use formatting to produce your preferred date format in the Format Cells tools instead
Formatting vs other things
(or, keep your sheets clean)
- it’s common to see Excel sheets that contain lots of extraneous bits
- headers, copyright info, explanations…
- ideally, all this extra stuff should be kept well away from your data, as it makes it harder to process that data safely
- …and you should definitely be using tables to help with this
Conditional formatting
- this can get complicated, and we’ll revisit more fancy conditional formatting in the intermediate training sessions
- the big idea is that conditional formatting alters the format as values change
Progress bars
Put a few random numbers in a column
Select them, and go to the Conditional Formatting menu

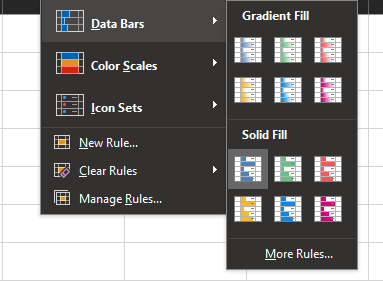

Select Data Bars
Duplicate values

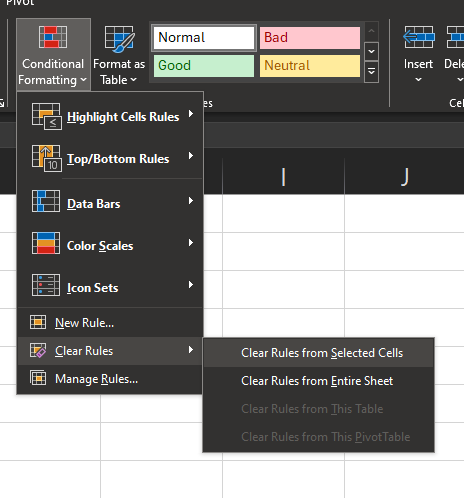

- Now clear that conditional formatting
- Add a duplicate value to your numbers
Duplicate values

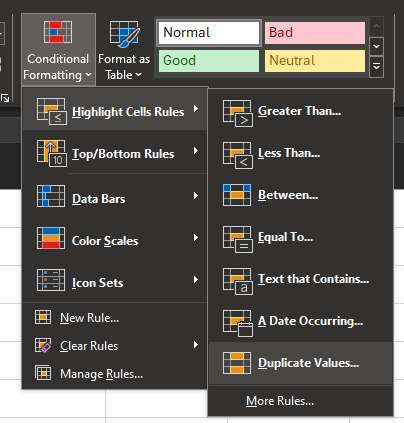

- Highlight duplicate values
Red-Amber-Green reporting

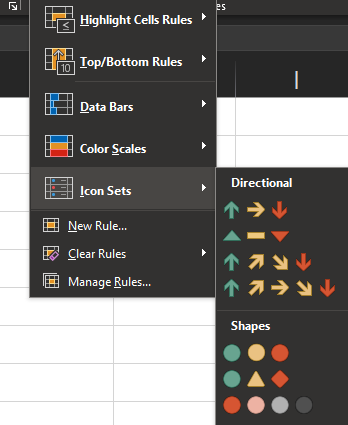

- RAG reporting with icon sets
Key shortcuts
-
Ctrl
+1
for the Format Cells dialogue -
Alt
,H
,E
,F
to clear formats -
Ctrl
+v
,Ctrl
,v
to paste values only
Formatting tips
- Accessibility is much more important than beauty
- Use number formatting for dates, currency, percentages
- Consider using validation to make sure that cells only contain what you expect them to contain
- Consider locking cells to protect formatting when that formatting is really important
- Use conditional formatting sparingly
